viSion Real-Time Water Monitoring
Continuous Water Quality Monitoring

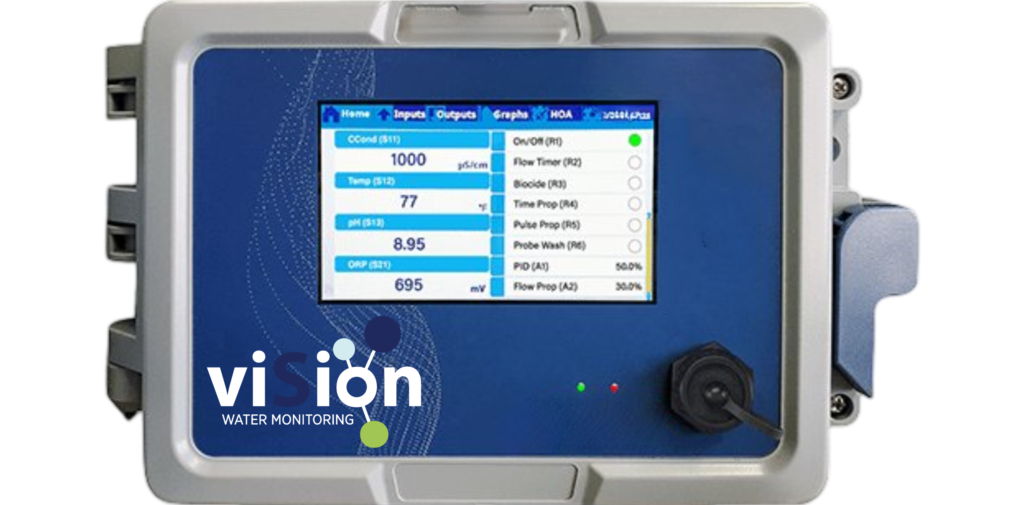

viSion is a real-time monitoring system for sealed heating and chilled water systems.
It constantly monitors the key water quality parameters that contribute to corrosion risk, helping building owners, operators and maintenance teams identify changes before they cause damage to the system.
The system acts as an early warning tool, much like a smoke alarm for water quality. If a monitored parameter falls out of range, viSion provides visibility of the issue so action can be taken before it affects system performance, asset life or compliance.

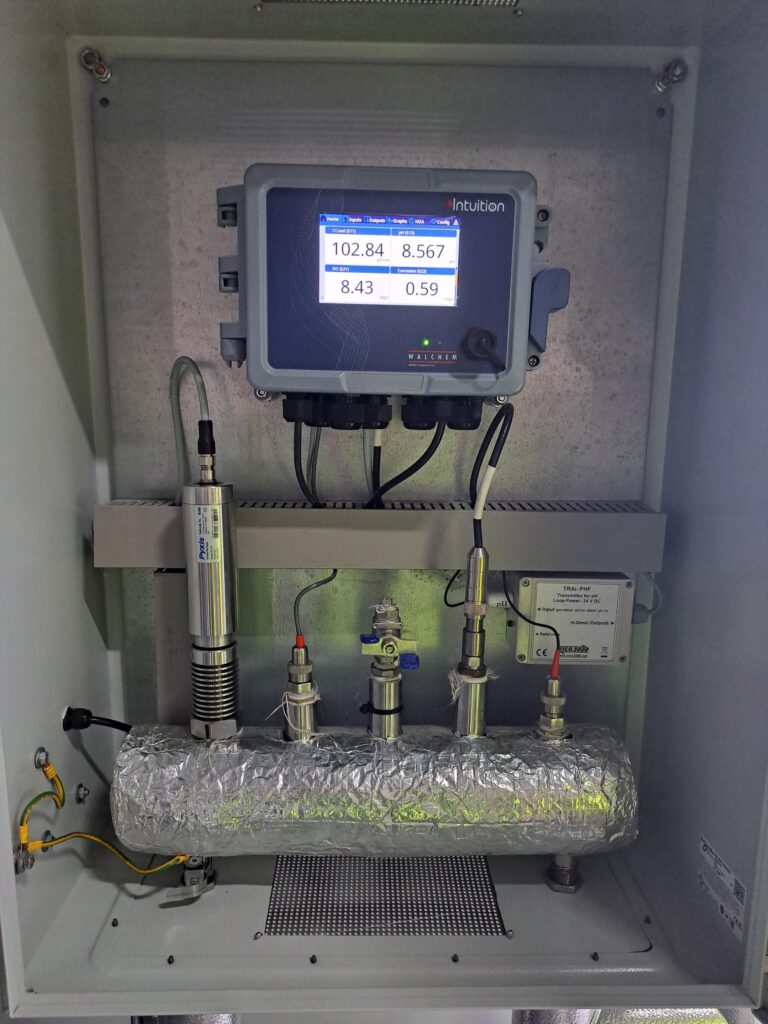

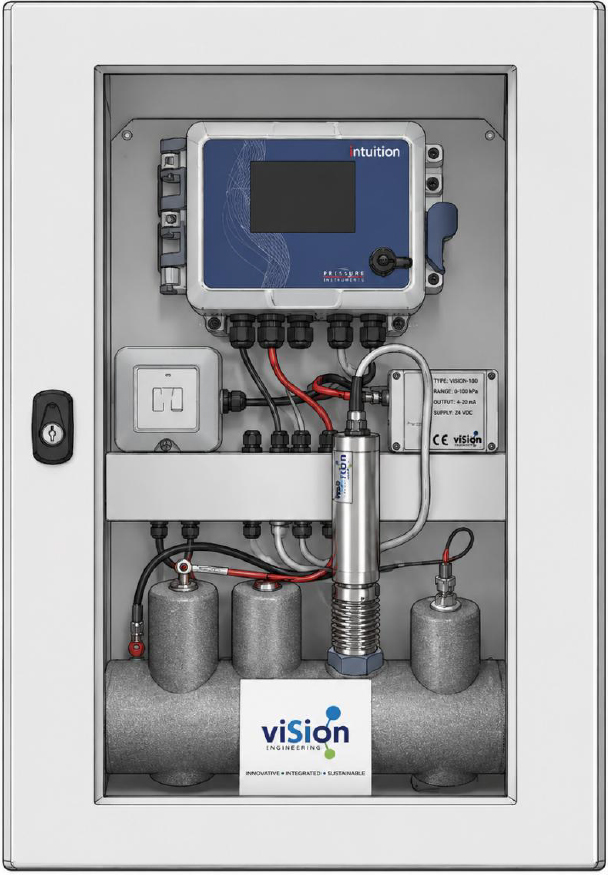

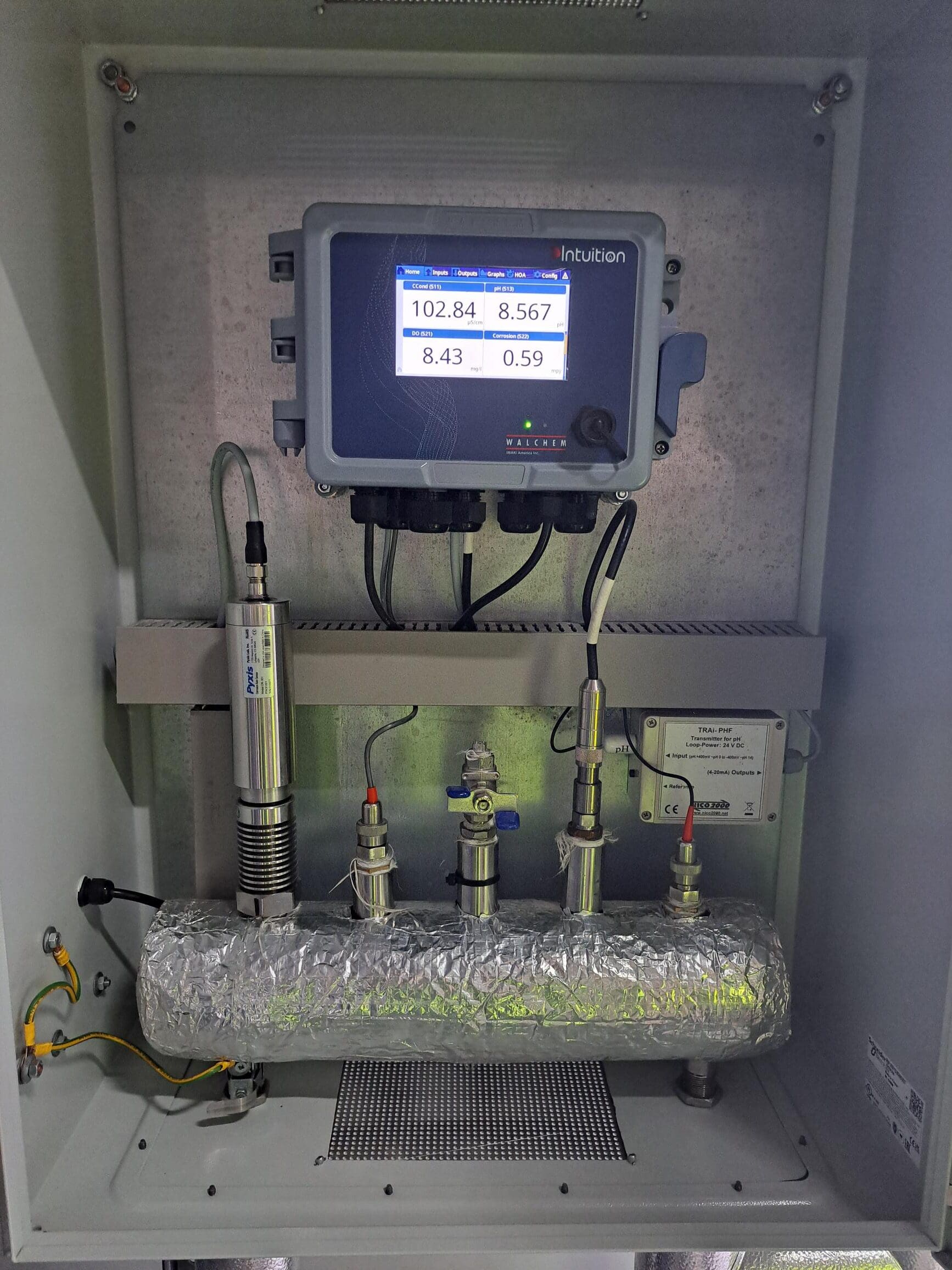

viSion systems are manufactured to suit project-specific requirements, including operating temperature, system pressure and the parameters that need to be monitored. The system is supplied pre-wired, with the sensor manifold and monitoring unit mounted within a wall-mounted enclosure.
Why choose viSion Monitoring?
How viSion Monitors System Water
Real-Time Monitoring
01viSion continuously monitors the parameters that affect corrosion risk and system water quality.
Project-Specific Sensors
02Each system can be configured around the parameters required for the project, including pH, electrical conductivity, dissolved oxygen, corrosion cell, pressure, temperature and flow.
Early Warning Alerts
03If a monitored parameter falls out of scope, viSion provides an early warning so the issue can be investigated before it leads to unwanted system damage.
BMS Integration
04viSion can integrate with Building Management Systems using BACnet or Modbus protocols.
Remote Access and Data
05Remote access is available via Ethernet, internet, LAN, BACnet or Modbus. The system can also provide alarm messages, summary reports, data logs and downloadable graphs.
Built for System Visibility
viSion monitoring systems are designed to make water quality data easier to access, review and act on.
The system can be integrated with BMS platforms using BACnet or Modbus, while remote access options support wider visibility for maintenance teams, facilities managers and building operators.
- BMS integration
- Remote access
- Alarm messages
- Summary reports
What can viSion monitor?
| Monitoring parameter | Why it matters |
|---|---|
| pH | Helps identify acidic or unstable water conditions |
| Electrical conductivity | Supports low-conductivity water quality control |
| Dissolved oxygen | Helps identify oxygen levels that may increase corrosion risk |
| Corrosion cell | Provides visibility of corrosion activity within the system |
| Pressure | Supports operational monitoring and system condition checks |
| Temperature | Helps track operating conditions across the system |
| Flow | Supports system performance and circulation monitoring |
Contact Us to Discuss Your Project
Frequently Asked Questions
What is viSion used for?
viSion is used to monitor key water quality parameters in sealed heating and chilled water systems, helping identify corrosion risk, water quality changes and compliance issues.
Is viSion a water treatment product?
No. viSion is a monitoring system. It does not treat the water directly, but it provides real-time visibility of the parameters that affect corrosion risk and system performance.
What does viSion monitor?
viSion can monitor pH, electrical conductivity, dissolved oxygen, corrosion cell, pressure, temperature and flow. The exact sensor setup can be configured to suit the project.
Can viSion connect to BMS?
Yes. viSion can integrate with BMS systems that use BACnet or Modbus protocols.
Does viSion support remote access?
Yes. Remote access is available via Ethernet, internet, LAN, BACnet or Modbus.
What reports and alerts are available?
viSion can provide alarm messages, summary reports, data logs and downloadable graphs.
Is viSion suitable for chemical-free systems?
Yes. viSion can monitor the key parameters required to maintain a chemical-free system.
Is the system supplied ready to install?
viSion is supplied pre-wired, with the sensor manifold and monitoring unit mounted within a wall-mounted enclosure.
Are there yearly licence or subscription fees?
There are no yearly licensing or subscription fees.
