Xi+ Ion Exchange Resin
Resin for System Water Conditioning
Xi+ is eleXion’s pH-regulated mixed bed ion exchange resin, designed to condition fill water, make-up water and existing circulating water in closed-loop heating and cooling systems.
Used within eleXion’s ioniX filling and conditioning units, Xi+ removes minerals and salts from the water while helping support pH at point of fill. This helps create low-conductivity, low-hardness system water from the outset.
Unlike standard resins, Xi+ has been developed specifically for closed-loop heating and cooling systems. It can also be used for inline recirculation, allowing existing system water to pass through the resin on a side stream basis to gradually condition and improve water quality.
Xi+ supports water treatment in accordance with VDI 2035 and VDI 6044 principles, alongside wider European water treatment guidance including SWKI BT 102-01 and ÖNORM H 5195-1.
Why choose Xi+ Resin?
How Xi+ Conditions System Water
How Xi+ Conditions System Water
01This specialist resin helps create low-conductivity system water by removing dissolved minerals and salts, while supporting a stable pH at the point of fill.

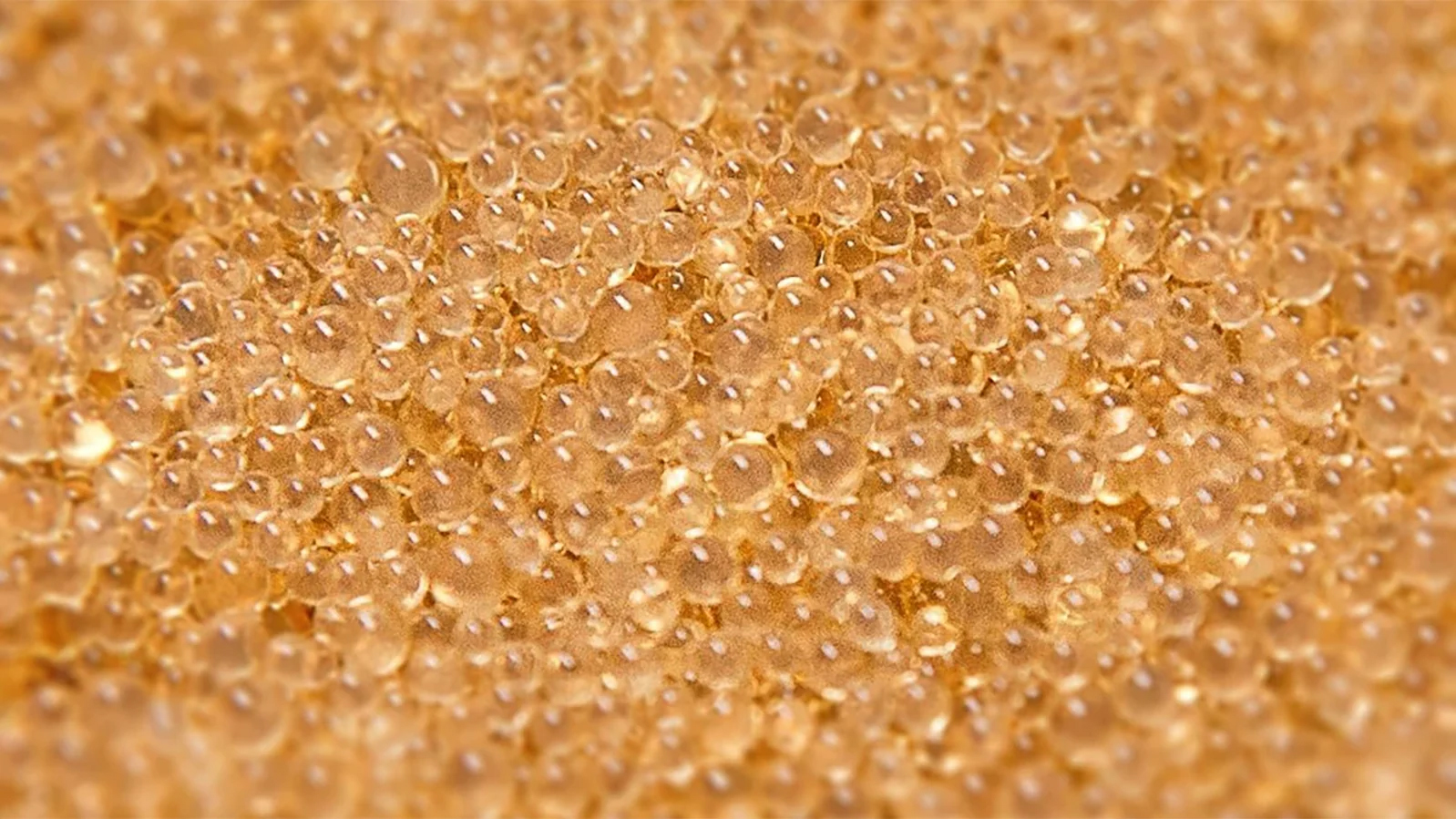

Mixed Bed Ion Exchange
02A specialist blend of anion and cation resin demineralises system water, reducing conductivity and hardness.
pH Support
03When used within capacity limits, the resin helps prevent pH from falling into the acidic range, supporting a pH above 8 at point of fill.
Aggressive Salt Removal
04Improved exchange capacity helps remove acids and aggressive salts more effectively than standard resin blends.
Inline Recirculation
05On live systems, the resin can be used for inline recirculation, allowing existing circulating water to be gradually conditioned on a side stream basis.
High-Temperature Operation
06The resin can operate in systems up to 90°C. For maximum capacity, operation around 60°C is recommended.
Consistent Resin Quality
Xi+ is manufactured as 100% new resin, not regenerated resin, and is produced in an ISO-accredited facility with ongoing quality control.

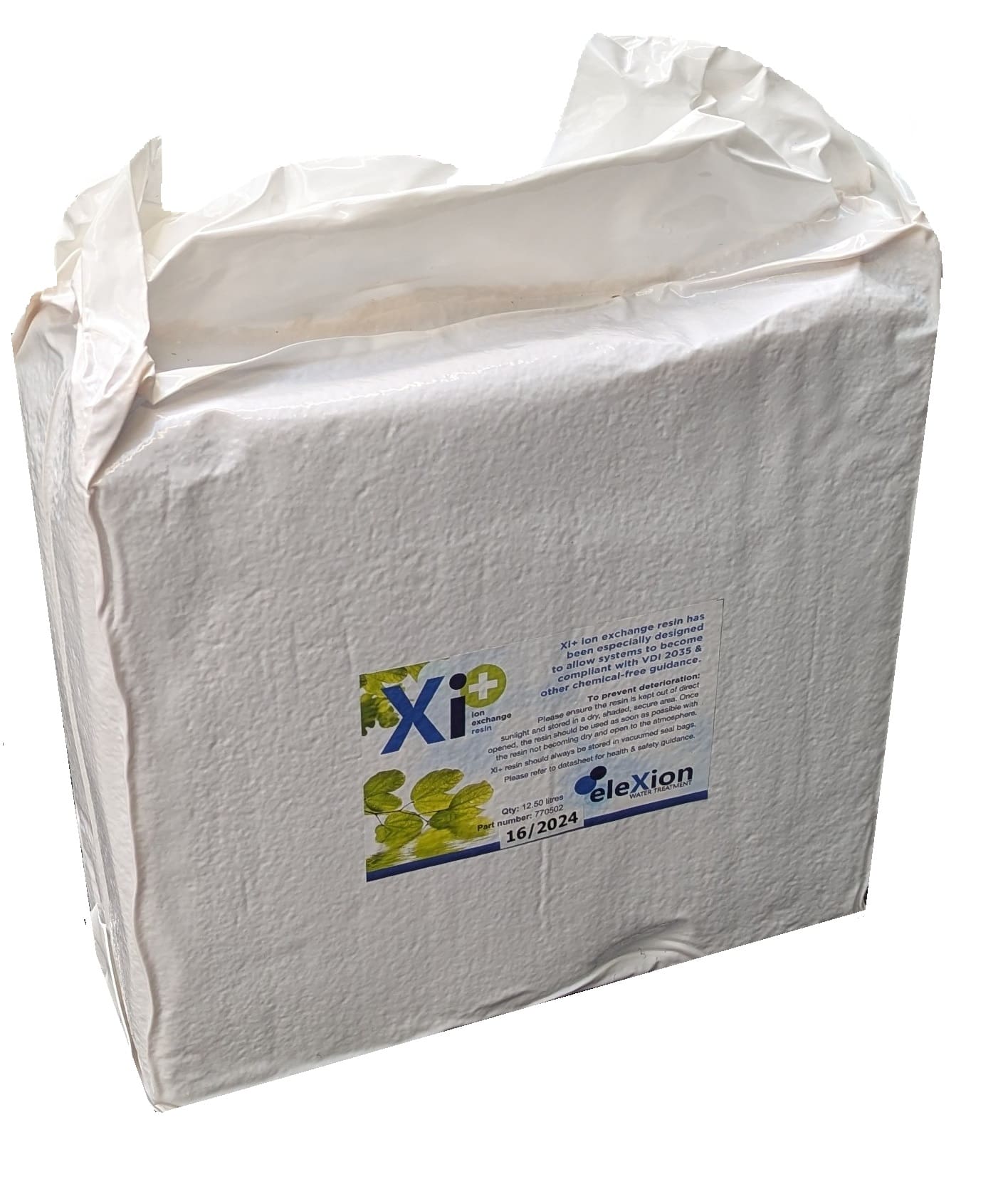

The resin is packed airtight to support safe storage without loss of quality.
- 100% new goods
- No regenerated resin
- ISO-accredited production
- Airtight packaging
Contact Us to Discuss Your Project
Technical Data
Frequently Asked Questions
What is Xi+ resin used for?
This specialist resin is used to condition fill water, make-up water and existing circulating water in closed-loop heating and cooling systems.
Is Xi+ used inside eleXion filling stations?
Yes. It is used within eleXion’s ioniX filling and conditioning products to remove minerals and salts from system water.
What does Xi+ remove from water?
The resin removes dissolved minerals, salts, hardness and aggressive salts, helping produce low-conductivity and low-hardness system water.
How is Xi+ different from standard resin?
It uses a specialist blend of anion and cation resin designed for closed-loop heating and cooling systems, with improved exchange capacity for acids and aggressive salts compared with standard resin blends.
Does Xi+ help control pH?
Yes. When used within capacity limits, the resin helps prevent pH from falling into the acidic range and supports a pH above 8 at point of fill.
Can Xi+ be used for inline conditioning?
Yes. On live systems, the resin can be used for inline recirculation, allowing existing circulating water to pass through the resin on a side stream basis.
What temperature can Xi+ operate at?
It can be used in systems operating up to 90°C. For maximum capacity, operation around 60°C is recommended.
Does Xi+ support VDI 2035?
Yes. The resin supports systems designed around VDI 2035 and VDI 6044 water quality principles.
Is Xi+ regenerated resin?
No. It is supplied as 100% new resin, not regenerated resin.
Can Xi+ be used with other filling station brands?
Yes. Xi+ can be used with all major brands of demineralisation filling stations.
