Sustainable corrosion protection strictly without the use of chemical additives or electrical power supplies, electrochemical water treatment offers constant ongoing corrosion protection to help maintain high efficiency operation & protection of expensive system components.
Electrochemistry Targets the following key elements which suppress corrosion rates
Corrosion protection doesn’t have to cost the earth and when operating a chemical free system, we are not only reducing the initial chemical usage but the constant uphill battle which requires regular testing, dosing and flushing to maintain acceptable levels of corrosion.
This doesn’t just prevent huge financial outlays but also thousands of litres of chemicals entering the environment every year.
Corrosion control with no compromise our environmentally friendly solution has been proven to outperform traditional UK methods while still being sustainable & environmentally friendly.
Naturally occurring reactions within the elector reaction tank remove oxygen, extract aggressive salts and prevent low acidic pH of the circulation water without the use of chemicals or power supplies.
Environmentally friendly
Sustainable
Cost Reduction
Constant protection
Time Saving
Assets Remain Protected
Working alongside BSRIA as leading experts in the field of electrochemistry elexion were asked to contribute on a technical bases in the latest addition of the BG50 With our contribution electrochemistry now has a space in UK guidance alongside the use of demineralised water.
Compliance with:
- BSRIA BG50.
- German guideline VDI 2035.
- German guideline VDI 6044.
- German district heat network guide AGFW.
- Danish district heat network guide.
- Swiss guideline SWKI BT 102-01.
- Austrian guideline ÖNORM H5195-1.
The use of chemical additives for corrosion protection are no longer necessary with a reduction in maintenance costs.
Assets remain protected by use of sustainable and environmentally friendly techniques
No complicated formulas or chemical cocktails are required with the process becoming uncomplicated and easy to understand
The formation of sludge is effectively prevented with existing sludge extracted from the system.
Elector is easy and inexpensive to operate and maintain
BUFFERING THE WATER AND BINDING ACIDS

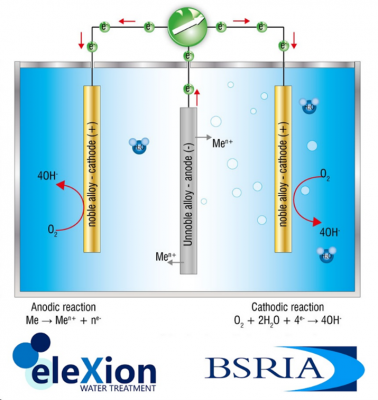

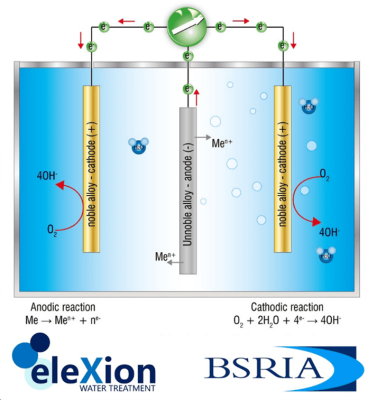

Due to the non-separated anode and cathode space, the magnesium oxide formed at the anode combines with the hydroxide up to its low solubility limit and serves as a buffer for the pH value. Free acids can be neutralised by the excess magnesium ion preventing a corrosive low pH and increasing the naturally forming stable layers of the system metals.
METAL DEPOSITION
System water containing dissolved metal ions as a result of corrosion can be extracted by use of the elector tank. The naturally occurring magnesium hydroxide separates the metal ions from the circulation water with the particle collecting inside the reaction chamber which can then be flushed out. This process helps to improve the overall condition of the circulation water.
LIMESCALE REMOVAL
In water where dissolved lime is present, the lime can be separated as calcium carbonate by the alkaline environment on the cathode surfaces, whereby a reduction in the overall hardness and an accumulation of lime residues in the elector reaction tank can be observed.
THE CHEMICAL-FREE PROTECTION

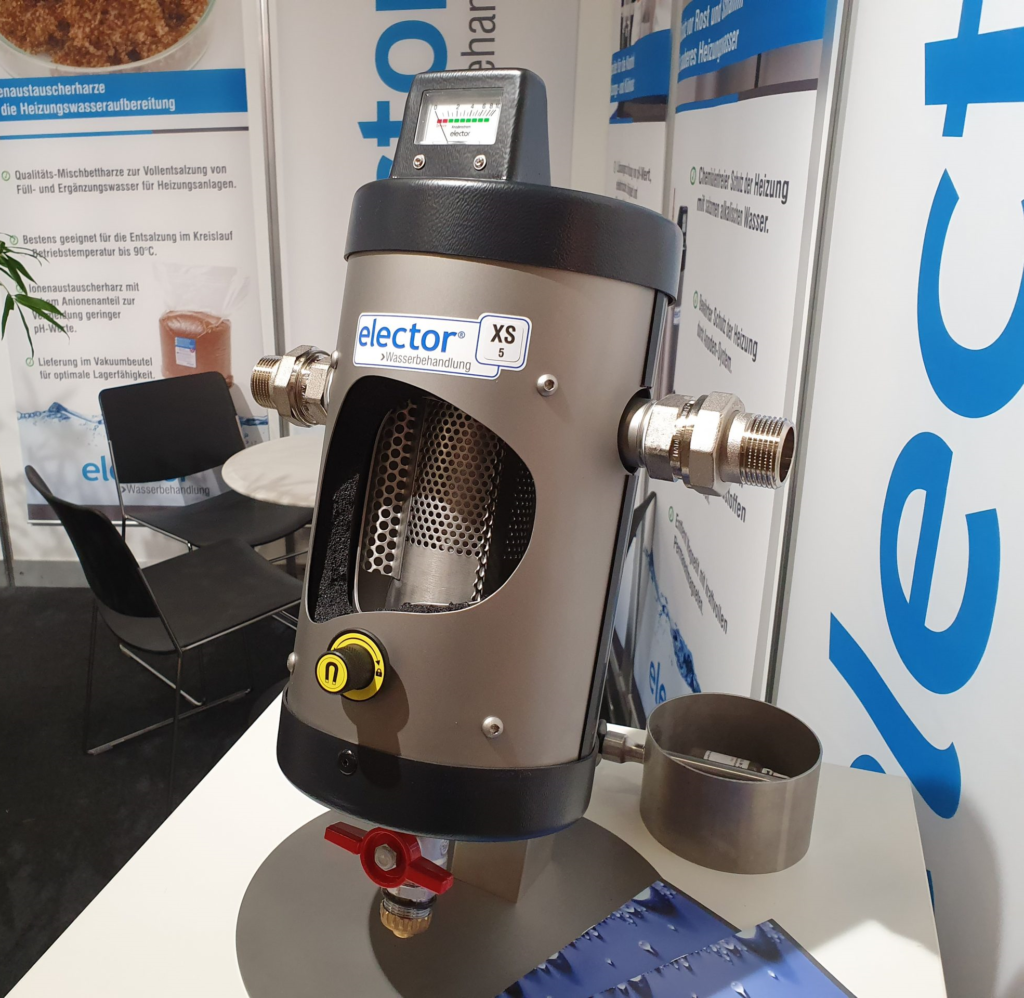

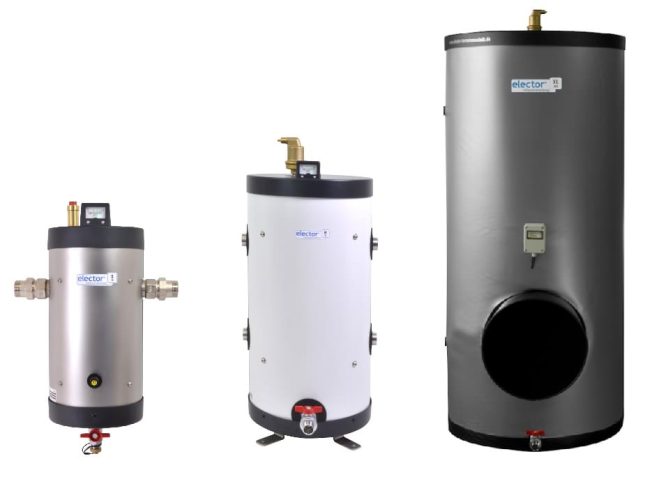

By using an elector reaction tank (anti-corrosion device), non-corrosive system water can be achieved strictly without the use of chemical additives. When used in conjunction with demineralised water or water naturally low in mineral & salt content, the circulation water will reach a non corrosive state protecting assets and keeping efficiency high.
No pH stabilisers & No corrosion inhibitors are required, the use of the elector tank makes it possible to constantly improve water quality by removal of dissolved oxygen & increasing pH value to the required limits, passivation of the metals is achieved thanks to naturally occurring oxide layers of the system metals.
Unlike expensive and complicated devices such as vacuum degassers the elector reaction tank doesn’t require any special commissioning, training or power supply to operate. This not only reduces cost at installation but ongoing maintenance costs also drop as the device operates using naturally occurring reactions not forced reactions from expensive internal components.
Unlike traditional air separators the elector reaction tank will successfully remove oxygen from the circulating water regardless of temperature, location on system or head pressure above the device.
The elector tank offers constant corrosion protection by:
- Removal of dissolve oxygen – In place of vacuum degassing.
- System filtration – In place of dirt separators.
- pH control – In place of chemical dosing.
