ioniX mobile FS300 & FS500 have been developed for the filling of larger volume systems, such as, district heating networks.
Increased filling capabilities through a vastly improved flow rate, reduce time onsite during the pre commissioning stages of any project.
An industry leading fill rate of 24,000 litres per hour can be achieved.
Tested to 15 bar and being able to operate up to 90 °C, the ioniX FS is suitable for most systems.
ioniX FS 300 & FS 500 ensure the fill water is conditioned prior to entering the system, providing demineralised water at point of fill incompliance with
- VDI 2035
- VDI 6044
- SWKI BT 102–01
- Ö‑NORM H 5195–1.
Raw water top-ups can seriously impact the life expectancy of all modern heating and cooling systems.
ioniX filling stations combat the root cause of scale and corrosion within modern sealed systems.
Targeting the following key elements which suppress corrosion rates when used in conjunction with electrochemistry.

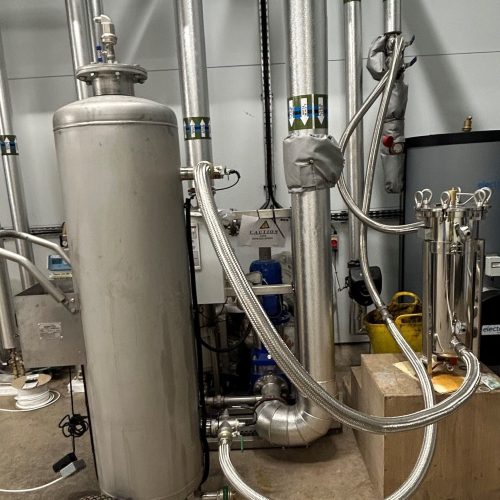

ioniX FS 300 are utilised during the pre commissioning stages of large district networks.
Following the installation of the eleXion water treatment system, the system can be filled with pH controlled demineralised water.
or

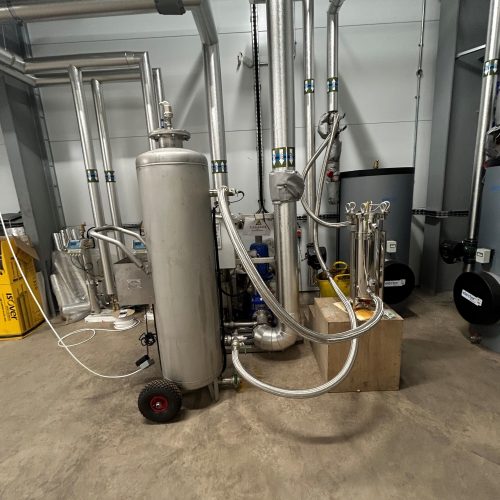

alternatively the current system water or tap filled systems can then complete inline conditioning, where the ioniX FS300 is installed to the flushing bypass valve on the elector tank, converting the current system water in to demineralised water.
ioniX filling stations meet the requirements for low-salt refill and top-up water in accordance with the applicable guidelines. Within the capacity range, the total hardness is <0.1 ° dH and the electrical conductivity of the refill and top-up water is at a level of <10 µS / cm.

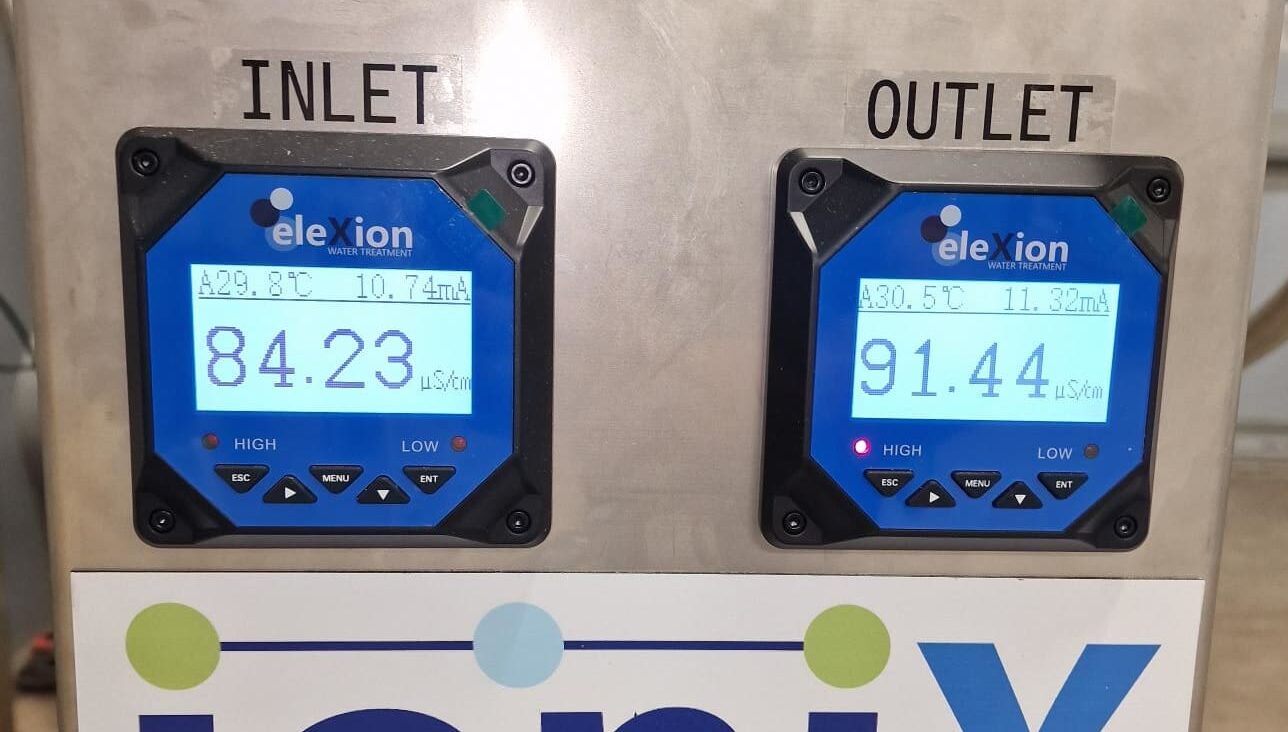

ioniX FS300, come supplied and fitted as standard with our water measuring computer.
Measuring the electrical conductivity of both the inlet water and the outlet water.
Functions of the computer:
- Measuring the electrical conductivity
- Measuring temperature
- Adjustable set point
- Alarm output
- Modbus compatible
- 4-20 mA
- 240v
ioniX filling stations for the complete desalination of the top-up water within heating & cooling systems that are operated in accordance with VDI 2035 & VDI 6044.
Using our industry leading Xi+ resin, minerals and salts are extracted from the fill water, while ensuring the pH rises at point of fill.
Ensuring assets remain protected and systems at design efficiencies.
